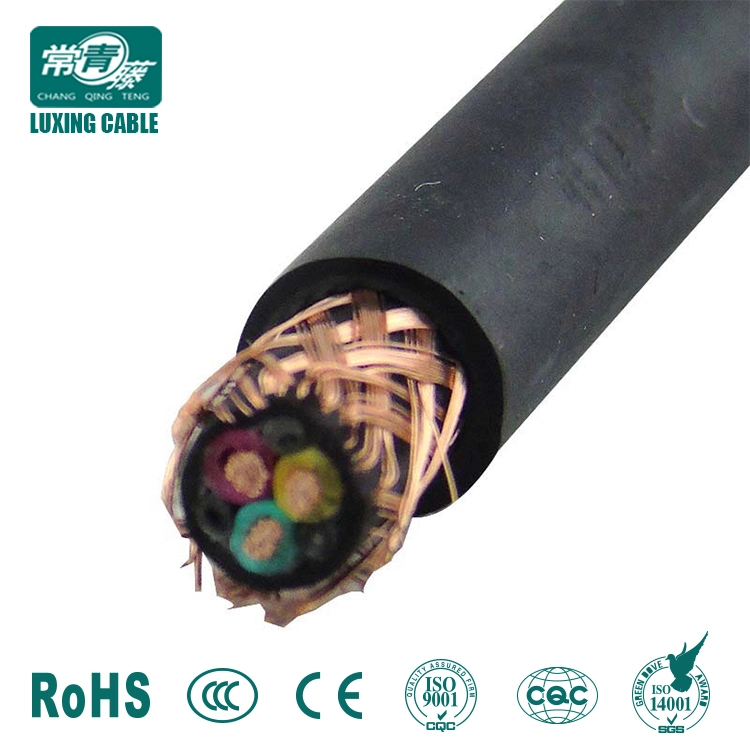

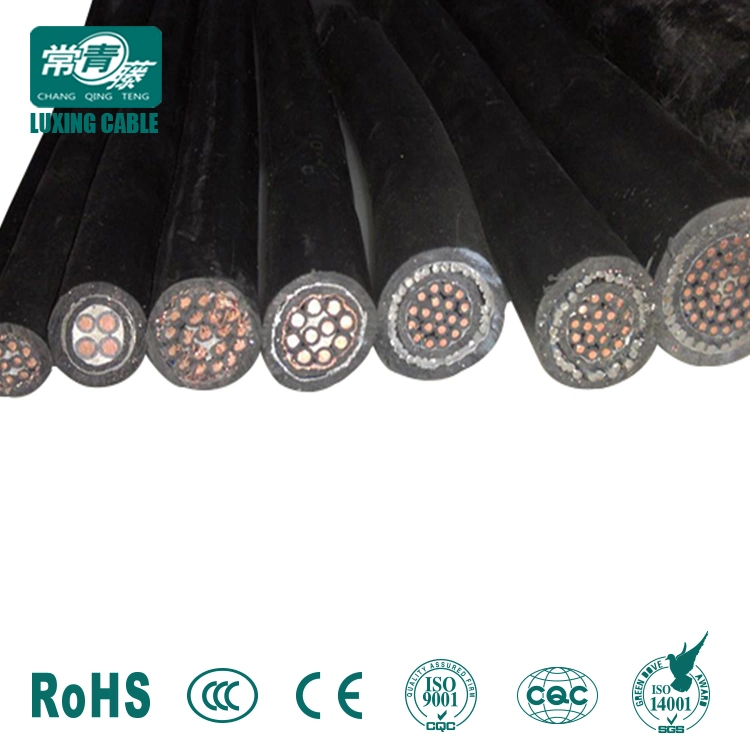

ITERM NAME : control cable with XLPE insulation,pvc jacket,braided shielding, flame retardant, halogen free
Specifications
Flexible Power Control Cable with Colored Conductors Conductor:Copper
Insulation:PVC,XLPE
Sheath:Flame retardant PVC
Application
For electricity supply and control in public networks and industrial plantsclassified areas (IEC 60079-14).
Recommended for direct burial. For indoor and outdoor installation in dry and wet locations, on racks, in conduits
Construction
Conductor plain annealed copper, class 1 or class 2 resp., acc. to IEC 60228
class 1: circular solid
class 2: circular stranded
Insulation polyvinylchlorid PVC
Colour code black, continuously numbered
Laying up cores twisted in layers (if necessary with filling element(s))
Wrapping at least 1 layer of plastic tape
Bedding extruded polyvinyl chloride PVC, black
Armour galvanized round steel wires/ galvanized steel tape
Screen copper tape screen/ copper wire braid screen/ plastic coated aluminium foil screen
Outer Sheath extruded polyvinyl chloride PVC, black
Technical Data Abbreviations
Flame retardancy: IEC 60332-1
Flame propagation:IEC 60332-3 cat. A
Outer Sheath
Amount of halogen acid gas:max. 17 %(IEC 60754-1)
Limiting Oxygen Index(LOI):min. 30 %(IEC 60332-3 ann.B)
Temperature Index (TI): min. 300 °C(ASTM-D-2863)
Temperature Range
- 30 °C up to + 70 °C(during operation)
- 5 °C up to + 50 °C(during installation)
max. + 160 °C(under short circuit)
Electrical Data at 20 °C
Character Unit Values
Conductor resistance max. Ω/km acc. to IEC 60228
Test voltage Urms core: core V 3500
Test voltage Urms core: armour V 3500
Nominal voltage Uo /U V 600/1000
Highest system voltage Um max. V 1200 (for three phase systems)
| No. of coSolids and cross-section (nom.) n / mm² | insulation thickness mm | outer sheath thickness mm | Overall diameter (approx.) mm | ||
| 5 x | 1.5 | Solid | 0.8 | 1.8 | 11.9 |
| 7 x | 1.5 | Solid | 0.8 | 1.8 | 12.8 |
| 10 x | 1.5 | Solid | 0.8 | 1.8 | 15.7 |
| 12 x | 1.5 | Solid | 0.8 | 1.8 | 16.2 |
| 19 x | 1.5 | Solid | 0.8 | 1.8 | 18.7 |
| 27 x | 1.5 | Solid | 0.8 | 1.8 | 22.2 |
| 37 x | 1.5 | Solid | 0.8 | 1.8 | 24.8 |
| 48 x | 1.5 | Solid | 0.8 | 1.9 | 28.3 |
| 5 x | 1.5 | Stranded | 0.8 | 1.8 | 12.4 |
| 7 x | 1.5 | Stranded | 0.8 | 1.8 | 13.4 |
| 10 x | 1.5 | Stranded | 0.8 | 1.8 | 16.6 |
| 12 x | 1.5 | Stranded | 0.8 | 1.8 | 17.1 |
| 19 x | 1.5 | Stranded | 0.8 | 1.8 | 19.9 |
| 27 x | 1.5 | Stranded | 0.8 | 1.8 | 23.6 |
| 37 x | 1.5 | Stranded | 0.8 | 1.8 | 26.3 |
| 48 x | 1.5 | Stranded | 0.8 | 1.9 | 30.1 |
| 5 x | 2.5 | Solid | 0.8 | 1.8 | 13 |
| 7 x | 2.5 | Solid | 0.8 | 1.8 | 14 |
| 10 x | 2.5 | Solid | 0.8 | 1.8 | 17.2 |
| 12 x | 2.5 | Solid | 0.8 | 1.8 | 17.8 |
| 19 x | 2.5 | Solid | 0.8 | 1.8 | 20.8 |
| 27 x | 2.5 | Solid | 0.8 | 1.8 | 24.6 |
| 37 x | 2.5 | Solid | 0.8 | 1.9 | 27.4 |
| 48 x | 2.5 | Solid | 0.8 | 2 | 31.7 |
| 5 x | 2.5 | Stranded | 0.8 | 1.8 | 13.6 |
| 7 x | 2.5 | Stranded | 0.8 | 1.8 | 14.7 |
| 10 x | 2.5 | Stranded | 0.8 | 1.8 | 18.2 |
| 12 x | 2.5 | Stranded | 0.8 | 1.8 | 18.8 |
| 19 x | 2.5 | Stranded | 0.8 | 1.8 | 22 |
| 27 x | 2.5 | Stranded | 0.8 | 1.8 | 26.1 |
| 37 x | 2.5 | Stranded | 0.8 | 1.9 | 29.5 |
| 48 x | 2.5 | Stranded | 0.8 | 2 | 33.8 |
